Mechanical Dust Collector Cyclone Scrubber System With Advanced Dust Collection Technology

Product Overview

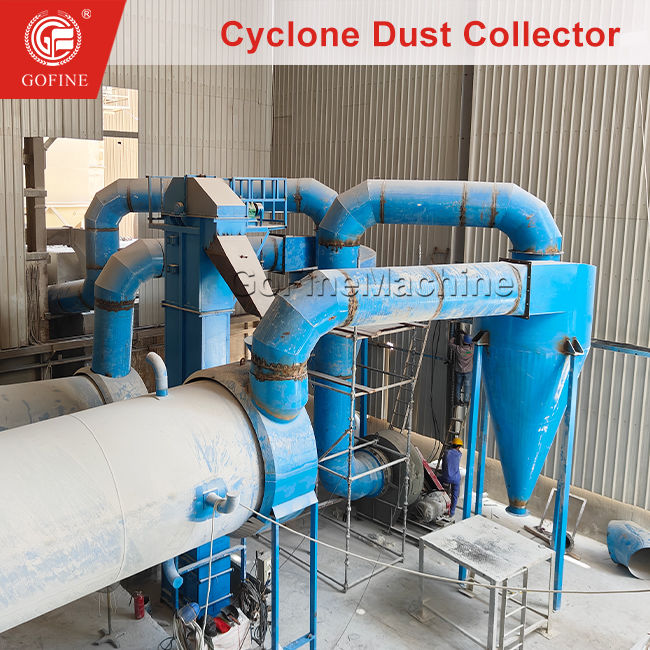

Cyclone Dust Collector is a mechanical device that uses centrifugal force to separate solid particles from gas. It does not require filter material and separates dust from air through airflow rotation. In fertilizer production, it is specially used to handle high-humidity, easily adherent dust (such as phosphate, urea particles, etc.) generated in the process of raw material crushing, granulation, and drying. It is a key equipment for the environmental protection of fertilizer production lines.

Features

• Simple Design: Few moving parts, making them easy to maintain and operate.
• Cost-Effective: Lower initial investment and operating costs compared to some other dust collection systems.
• High Dust Load Capacity: Can handle high concentrations of dust and large particulate matter.
• Durable Construction: Built to withstand harsh industrial environments.
• No Filters: Eliminates the need for filter replacement, reducing maintenance.
• Effective for Large Particles: Efficient at removing coarse and heavy dust particles.
• Compact Design: Smaller footprint compared to some other dust collection systems.
• Can be used as a pre-cleaner: Often installed upstream of baghouses to remove larger particles, extending filter life.
• Multiple configurations: Available in single, multiple, and reverse-flow designs to suit different applications.
• Energy Efficient: Consumes less energy compared to traditional filtration systems.

Working Principle
1. Intake stage: dust-laden airflow enters the cyclone from the tangential inlet at a speed of 15-20m/s, forming a high-speed rotating airflow;
2. Centrifugal separation: dust particles are thrown to the wall under the action of centrifugal force, and slide down the wall of the cylinder to the ash hopper (fertilizer dust is easier to separate due to its high density);
3. Gas purification: clean air forms an internal vortex and is discharged through the top exhaust pipe;
4. Ash discharge stage:
Dry dust: continuously discharged through the rotating ash discharge valve
High-humidity dust: optional pneumatic vibration device to assist in falling

Applications
Fertilizer production: Dust is generated during processes such as crushing, granulation, and screening.
Woodworking: Collecting sawdust and wood shavings.
Metalworking: Managing metal shavings and dust from grinding and welding.
Cement Production: Capturing cement dust and raw material particles.
Food Processing: Removing flour dust, sugar particles, and other powdered ingredients.
Agriculture: Handling dust from grain processing.
Mining: Controlling dust from rock and mineral extraction.
Power Generation: Removing fly ash from flue gases.
Any industry with high dust loads: Ideal for processes generating large volumes of coarse particulate matter.


Product Parameters


Regular Checks:
Daily/Weekly: Monitor suction, listen for unusual noises, check dust discharge, and inspect for leaks.
Monthly: Inspect wear liners, check for corrosion, test discharge valve, inspect fan (belts, buildup).
Key Maintenance:
Empty the dust collection regularly.
Clean filters (if equipped).
Lubricate moving parts.
Tighten bolts.
Replace worn liners and seals.
Troubleshooting:
Low suction: Check for blockages, leaks, and fan issues.
Condensation: Insulate the equipment.
Material buildup: Use vibration.
